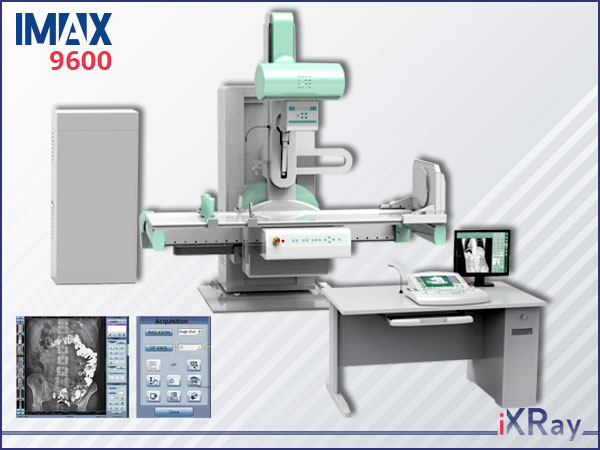

IMAX 9600

IMAX 9600
Dynamic FPD DRF system
HF digital radiograghy and fluoroscopy system

Clear and accurate diagnosis. Excellent image quality

Futures & Benefits

Clear and accurate diagnosis
Excellent image quality

Millisecond snapshot, meet various clinical diagnostic requirements

Chest radiology

Lumbar vertebra radiography

Esophagography

Upper gastrointestinal contrast

Lower gastrointestinal contrast

Full gastrointestinal contrast

Low radiation dose / High conversion rate
Instant exposure / Green and safe

● Adopt advanced pulse fluoroscopy technology, combined with high standard hardware configuration. Well integrated ultra low dose and ultra high quality images.

● New automatic dose control system, obtain clearer image information with less radiation dose,reduce radiation exposure to doctors and patients.

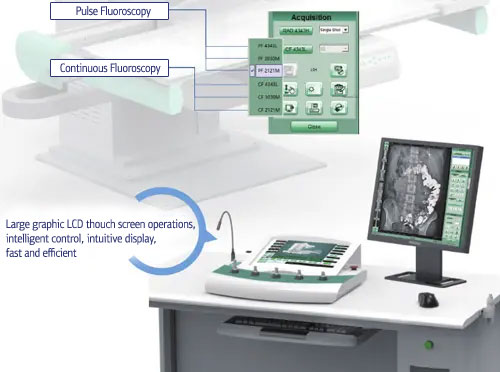

2 fluoroscopy modes adjustable

Intelligent control / People-oriented and great care
Focus details / Perfect experience

Flexible and efficient multidimensional movement / Full satisfaction in varieties of positions

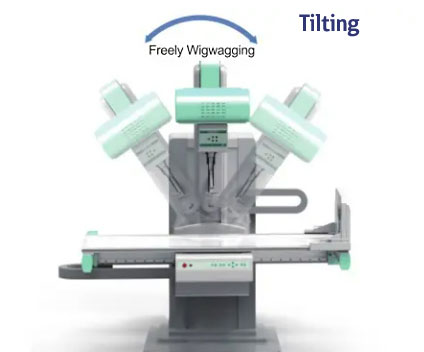

Tube freely wigwagging

X-ray tube tilting angle photography, meet clinical radiography needs of special parts such as root bone axial, kneecap axial, cervical vertebra frontal, sacrum-coccyx etc.

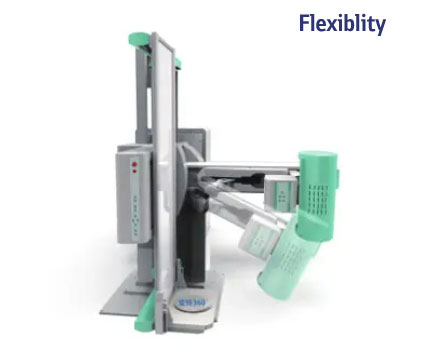

Freely rotate

Multifunctional foot panel can also be used as stable and comfortable seat for patient to do examination of special body position like throat photography based on the column rotation.

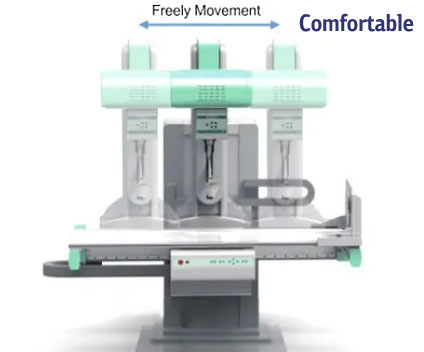

Freely column movement

The detector can be moved in large scale which eliminates the need for patient repositioning.

Smart innovation / Fully functional dynamic FPD / Excellent image wide-range view

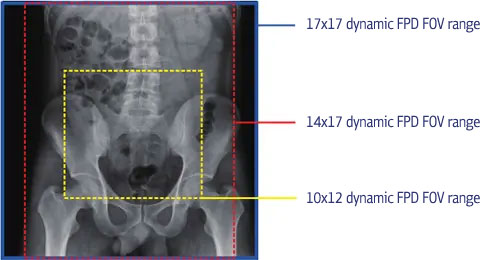

17x17 large size dynamic FPD, which brings large acquisition area, wide imaging field and full image coverage.

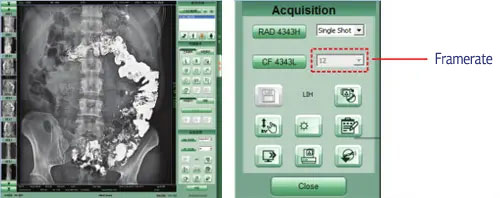

High framerate

High framerate makes it possible to acquire high definition images in dynamic mode the same as in the static mode. The highest acquisition speed can be up to 30 frames per second, clear and smooth dynamic images.

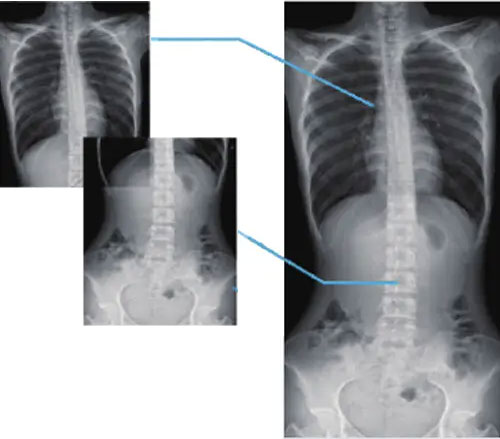

Automatic stiching function

Scoliosis and weight-bearing skeletal deformity of lower limbs,Preoperative and postoperative panoramic photography can directly reflect the extent and location of the lesion，Provide reliable diagnostic basis for clinical practice.

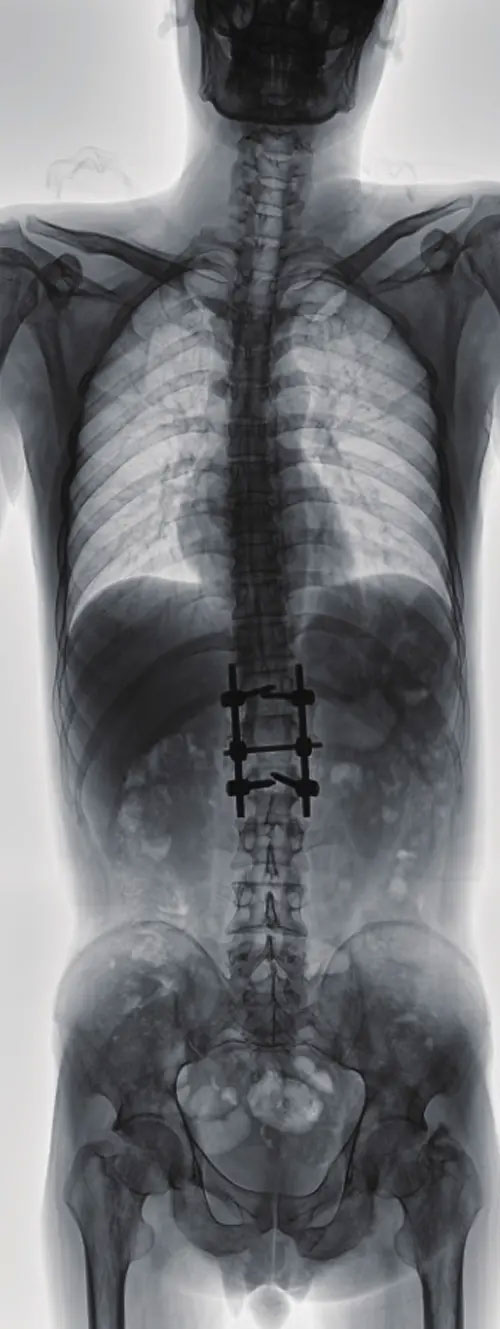

Full spine, full lower limbs panoramic photography, achieve one-step radiography during the observation of scoliosis from cervical vertebra to caudal vertebra or other lesions. It can directly show the whole anatomical form and scoliosis parts of spine and lower limbs,also vertical position full lower limbs, full spine imaging is only body position which correctly reflect the change of human physiological functions.
