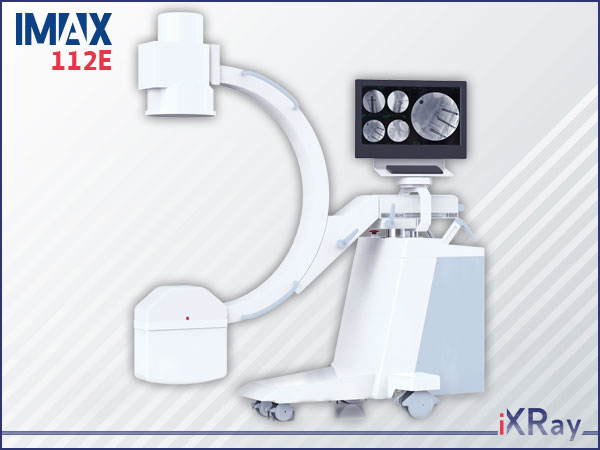

IMAX 112E

IMAX 112E
High frequency mobile C-Arch system

Integrated design ● Compact and lightweight ● Extraordinary smart

Futures & Benefits

Fully digital megapixel imaging system with high definition

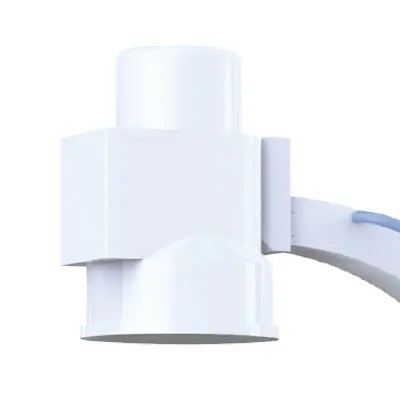

High-quality megapixel image enhancer for high-resolution image acquisition.

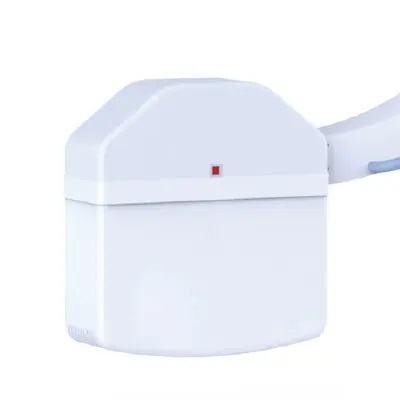

High quality X-ray source Multiple working modes,arbitrarily selected

Integrated computer workstation & rack

● C-arm host and workstation integrated design, no cable, easy to move

● Small footprint, saving space

● Integrated workstation with rich image processing capabilities

● "Independent Operation" to complete the movement and exposure of the C-arm

Hand controller

● Humanized miniature, mobile operator panel design, free control from the host

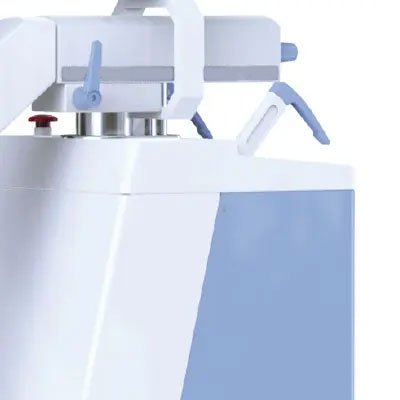

Smart and compact design

● Five mechanical movements, free rotation without dead ends

● Wide base design, more secure

● The integrated design of the whole machine is compact and beautiful

● Rack monitor rotation for free viewing in multiple directions

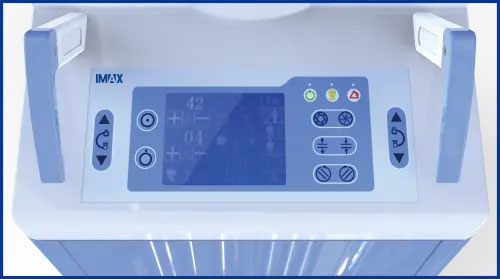

Human graphic operation interface

● Human graphic LCD touch screen design, make it easy to operate

● Intelligent parameter adjustment, more accurate

Mobile X-ray system IMAX 112E	focal spots 0.3/1.5 mm maximum output power 5 kW (40 kHz) anode inclination angle 150 total emitter filtration ≥3 mmAl
Mode of automatic fluoroscopy	tube voltage 40-120 kV, current 0.3-4 mA
Mode of manual fluoroscopy	tube voltage 40-120 kV, current 0.3-4 mA
Mode of manual fluoroscopy	tube voltage 40-120 kV, current 4.1-8 mA CCD TV camera (CCD) with high resolution motorized vertical movement of 400 mm the distance from the emitter to the receiver is 960 mm orbital displacement ±120° horizontal axis of rotation ± 180° vertical axis of rotation ± 12° horizontal movement of 200 mm cassette holder 240x300 mm double pedal for control in copy mode medical grayscale LCD monitor 23″ PC for database management and image processing overall dimensions 240x81x221 cm weight 370 kg 220V power supply
Image processing	horizontal/vertical display positive/negative freezing of the last frame screen indication continuously adjustable recursion

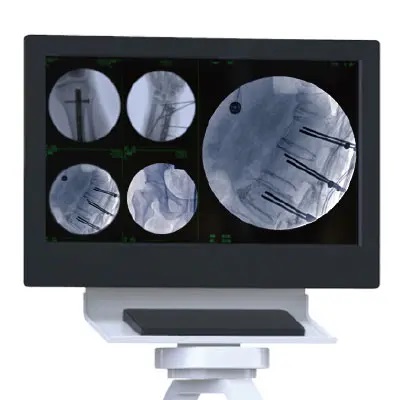

IMAX 112E is equipped with a workstation with two modern monitors that provide an expanded field of view. Digital signal processing provides exceptional visualization and makes it possible to store the received data, as well as the progress of the surgical intervention on digital media and transfer it to the general hospital network.

The X-ray system IMAX 112E has a wide range of diagnostic imaging modes - X-ray, X-ray, pulsed fluoroscopy.

The technical characteristics, digital technologies and high resolution of the X-ray image of IMAX 112E make it possible to perform effectively and productively both in daily routine examinations and surgical interventions, as well as in complex operations in such clinical areas as cardiovascular and orthopedic surgery.

The X-ray diagnostic complex IMAX 112E is a perfect combination of digital technologies while maintaining the high quality of mechanical performance.

Fields of application of IMAX 112E:

Traumatology. Diagnosis of the injury, development of treatment tactics and control over the course of the operation.
Orthopedics. Diagnosis and correction of pathology of the musculoskeletal system.
Diagnostic studies in various clinical areas using contrast agents.
